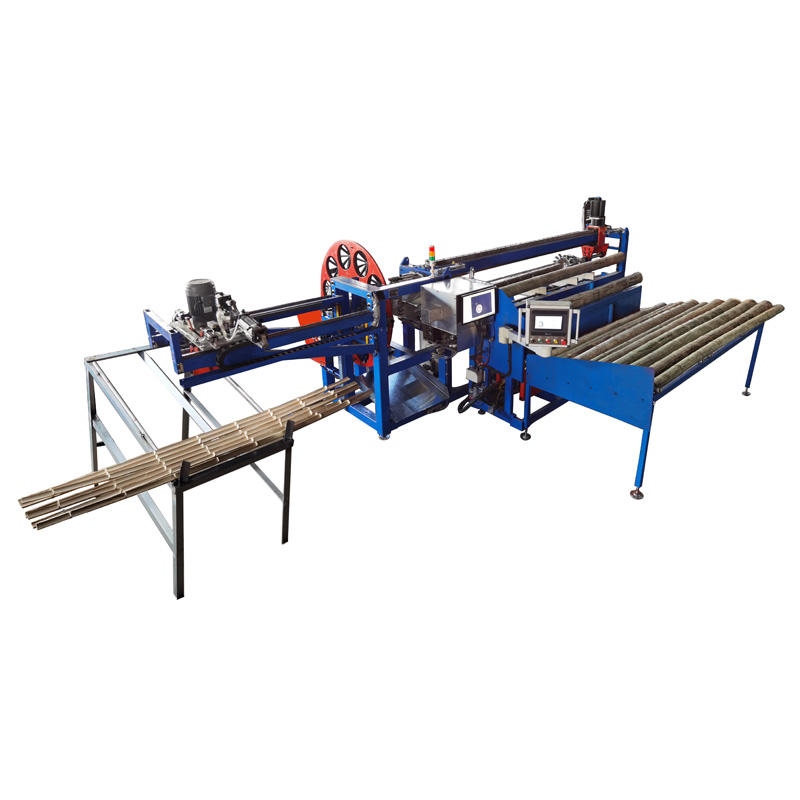

The fully automatic bamboo splitting and sorting machine developed by our company, and we have already applied for a number of national patents.
Bamboo processing has always been an intricate task, requiring manual labor and precision. However, with technological advancements, the introduction of fully automatic bamboo splitting machines has transformed the industry. Our automatic bamboo splitting machine has a production capacity of 4 tons per hour.These machines offer unparalleled efficiency and precision, significantly improving production processes.
When working with bamboo, a bamboo splitting machine or a bamboo splitter machine is essential for efficient processing. The bamboo splitter ensures that the bamboo splitting process is smooth, whether you're splitting bamboo for crafts or industrial use. For making bamboo-based panels, the bamboo plywood making machine comes in handy. It's important to consider the splitting machine price and bamboo splitter machine price when investing in such equipment, while a bamboo splitting tool can be useful for smaller tasks.
If you're interested in bamboo splitting machine price, please feel free to contact us directly. Our team is ready to assist you with detailed information, quotes, and guidance to ensure you find the right machine that fits your needs and budget.
Fully automatic bamboo splitting machines mark a significant leap forward in bamboo processing technology. Their numerous advantages include:
1. Enhanced Efficiency
The automated functionalities of these machines drastically reduce processing time, enabling higher production output within shorter durations.
2. Labor Cost Reduction
By automating the majority of tasks involved in bamboo processing, these machines significantly diminish the need for manual labor, consequently lowering operational costs.
3. Improved Product Quality
Precision engineering ensures consistent and accurate splitting of bamboo poles, leading to superior-quality bamboo strips suitable for various applications.

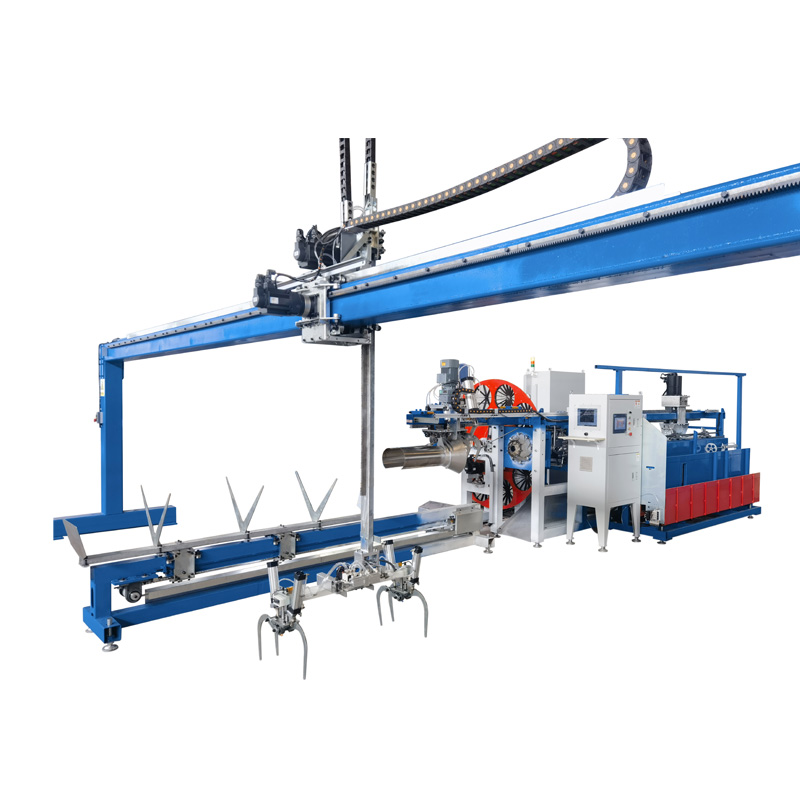

Our company proudly presents a cutting-edge fully automatic bamboo splitting machine that embodies innovation and efficiency. Here's a breakdown of its key features:
Automatic Length Adjustment
The machine autonomously adjusts the length of bamboo poles, eliminating the need for manual intervention and ensuring uniformity in output.
Automatic Bamboo Pole Feeding
Streamlining the feeding process, the machine automatically feeds bamboo poles, optimizing workflow efficiency.
Automatic Detection of Bamboo Pole Characteristics
Integrated sensors detect the outer diameter and thickness of bamboo poles, facilitating precise splitting and grading.
Automatic Splitter Disc Change
Effortlessly switch between splitter discs to accommodate different bamboo pole sizes and processing requirements.
Automatic Bamboo Splitting
With precision and speed, the machine splits bamboo poles into strips of desired dimensions, maintaining consistency throughout the process.
Automatic Bamboo Strip Grading
The machine's grading function categorizes bamboo strips based on predefined parameters, ensuring uniformity in product quality.
In contrast to traditional manual bamboo breaking machines, our fully automatic solution offers unparalleled advantages:
Higher Output: Increased production capacity leads to higher output rates.
Enhanced Quality: Consistent and precise processing results in superior-quality bamboo strips.
Reduced Costs: Lower labor requirements and operational efficiency translate to reduced production costs.
Crafted with precision, the machine's welded square tube structure guarantees robustness and durability. Its simple yet sturdy design ensures longevity and reliable performance, even in demanding industrial environments.
Our machine incorporates cutting-edge visual camera measurement technology, revolutionizing bamboo processing. By employing non-contact measurement methods, we ensure accuracy and reliability in thickness measurement, minimizing errors and optimizing production efficiency.
Equipped with an intuitive control panel, our machine ensures ease of operation. With a single button start, users can initiate processing effortlessly, while comprehensive system recording capabilities provide valuable insights into production status and output.
Increased Efficiency: Streamlined workflows and automated processes enhance overall production efficiency.
Cost Savings: Reduced labor costs and optimized resource utilization translate to significant cost savings.
Superior Quality: Consistent and precise cutting results in high-quality bamboo strips suitable for diverse applications.
"Our production efficiency has skyrocketed since incorporating this machine into our workflow. It's a game-changer!" - Mr. Zhang, Bamboo Processing Factory Owner
"The quality of bamboo strips produced by this machine is unmatched. It has truly elevated our product standards." - Ms. Li, Craftsmanship Enthusiast
From furniture manufacturing to handicrafts and construction, the applications of fully automatic bamboo splitting machines are vast and varied. Their versatility and efficiency make them indispensable tools across various industries.
|
NO. |
Parts Description |
Brand |
Pictures |
Advantage |
|
1 |
Servo Motor |
|
|
High precision, stable operation, small size and light weight, strong anti-overload ability. |
|
2 |
Liner Guide Way |
|
|
The positioning accuracy is high, the load strength is large, the high-speed movement is less abraded, the rigidity is good, and the operation is stable. |
|
3 |
Pneumatic Cylinder |
|
|
Large load and fast response and action, the working environment is adaptable, and it is durable. |
|
4 |
PLC |
|
|
High reliability, modular structure, strong anti-interference ability, and convenient system design and debugging. |
|
5 |
Electrical Elements |
|
|
Small size, high efficiency, low noise, low energy consumption, and sensitive action. |
|
6 |
3D Camera |
|
|
Industrial-grade high-definition camera, clear pictures, high precision, and strong anti-interference ability. |
|
NO. |
Description |
Parameter |
|
1 |
Total Installed Power |
18.5 KW |
|
2 |
Machine Weight |
Main Splitting Machine 3100KG Grading Machine 1700kg |
|
3 |
Machine Size |
10450×9000×3300mm |
|
4 |
Splitting Efficiency |
Cycle time 6S-8S，as bamboo pole length difference |
|
5 |
Quantity of Splitter Disc |
10 PCS |
|
6 |
Bamboo Pole Length |
1000mm – 2600mm |
|
7 |
Bamboo Pole Diameter |
50mm – 170mm |
|
8 |
Quantity of Bamboo Strip Grading Trolley |
6-8 Units Trolley |
|
9 |
Bamboo Pole Loading Direction |
Left or Right, as per customer request |
|
10 |
Length Adjusting |
Automatic Parameter Setting |
|
11 |
Splitter Head |
Rotatable Head |
|
12 |
Size Measurement |
3D Visual Technology, Whole Circle Thickness |
|

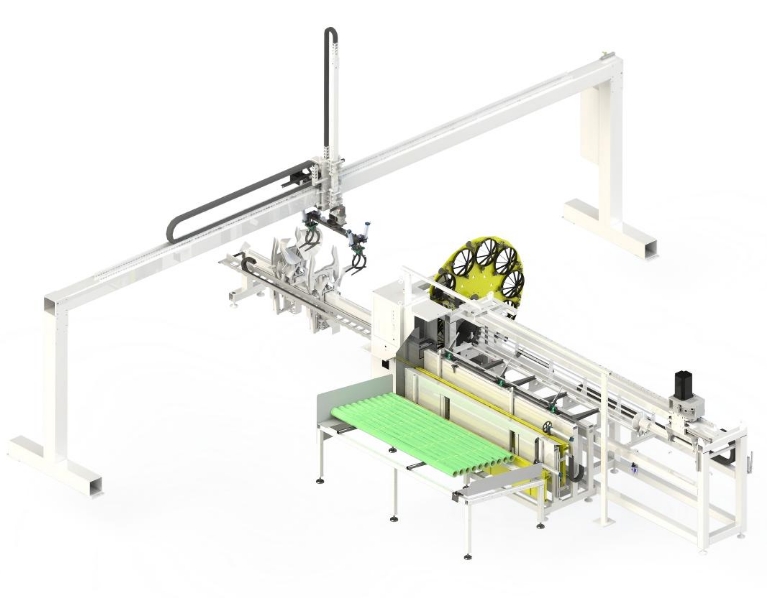

No. |
Mechanism |
Description |
Sketch |
|

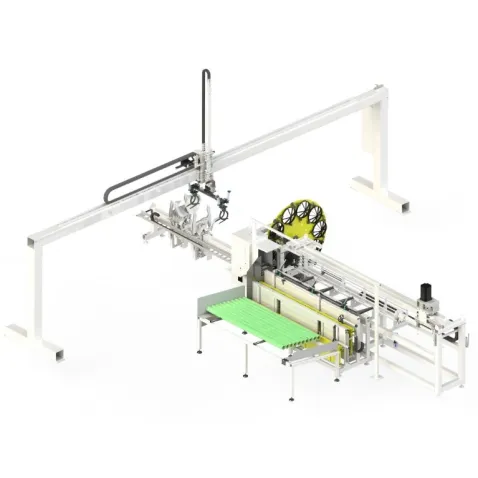

1 |
Inclined Platform |
Slope spacing of the inclined platform can be adjusted according to different bamboo lengths. |
|
|
2 |
Bamboo Pole Auto Loading |
The bamboo pole is lifted to the highest position by lifting step, compared with the traditional chain loading, the ladder loading has better stability and higher reliability, and does not need to be adjusted according to different length of bamboo pole. |
|
|
3 |
Visual Measuring |
By using the most advanced 3D vision imaging technology in the industry and laser-assisted measurement, the diameter and thickness of each position can be accurately obtained, which is less affected by the outside world. |
|
|
4 |
Bamboo Pole Auto Splitter |
Consists of splitter , centering mechanism, bamboo pole pushing mechanism, bamboo strips drawing and gathering mechanism, ensures that the bamboo poles are always in the middle position, to increase the uniform of bamboo strips. |
|
|
5 |
Bamboo Strips Drawing |
Bamboo strips drawing mechanism is controlled by a three-phase motor, to draw the bamboo strips out of machine |
|
|
6 |
Bamboo Strips Conveyor |
Transfer the bamboo strips to the classifying position, that under classify gantry |
|
|
7 |
Bamboo Strips Classify Gantry |
Classify bamboo strips, according to different thickness and width |
|

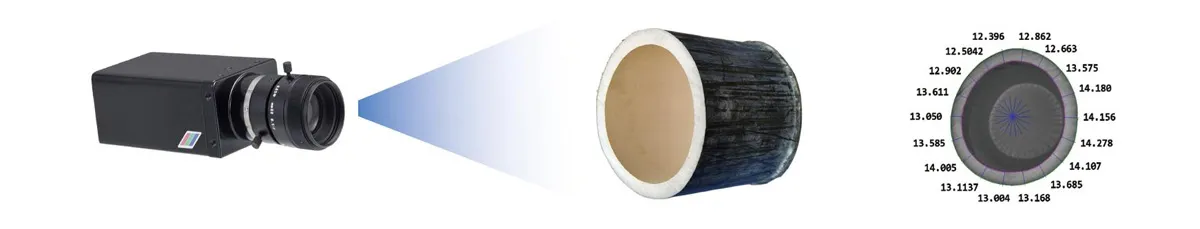

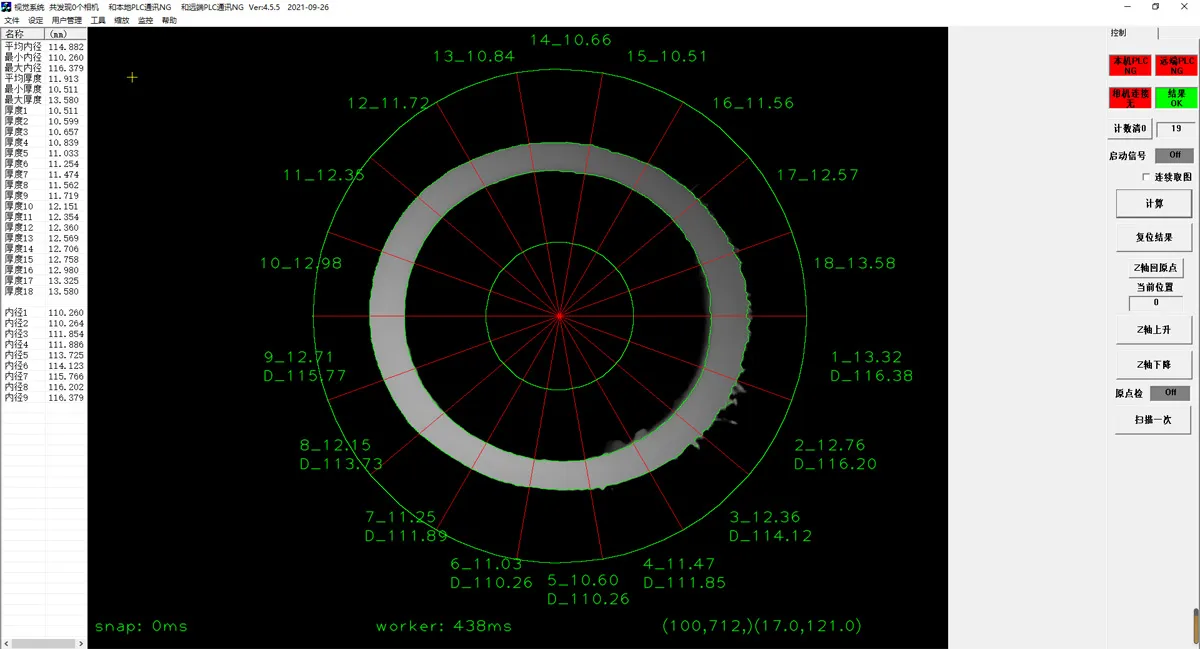

1. 3D camera takes picture of bamboo pole to measure the size, by scanning the sawing surface of the bamboo pole to obtain the size data, the size accuracy can achieve 0.3mm and takes only 0.5 second. The size data including the thickness of the entire circle of the bamboo pole, and the inner & outer diameter of the bamboo pole.
2. The operation system is simple and easy to understand, and the equipment operation and production status are collectively fed back to the control panel. Real-time monitoring and statistics of output help the factory understand the production status.
3. Bamboo splitting parameters can be adjusted arbitrarily according to customer production requirements.
4. Equipment troubleshooting is simple. In the event of a failure, the alarm screen prompts the parts that need to be checked and how to deal with it.

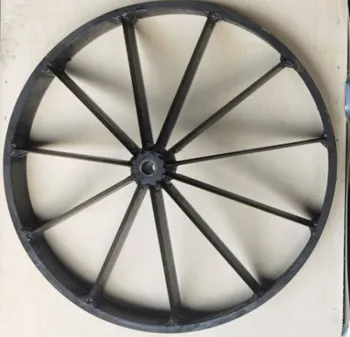

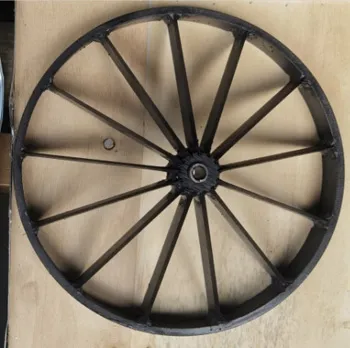

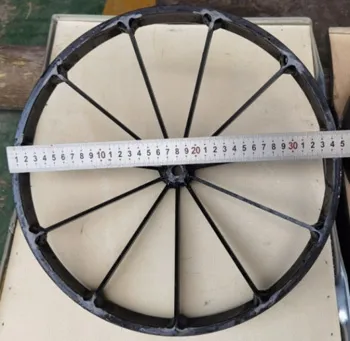

5. The bamboo splitter disc adopts a 350mm diameter round disc, the blade is made of alloy material, after heat treatment, the hardness is strong, the rigidity is strong, to achieve good quality bamboo strip.
 |
 |
 |

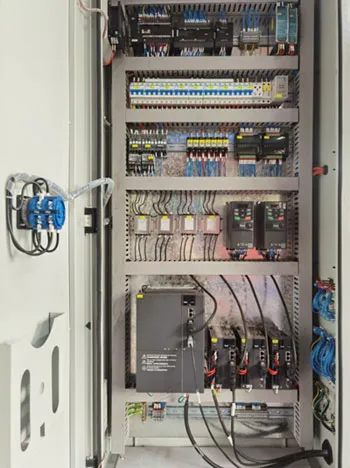

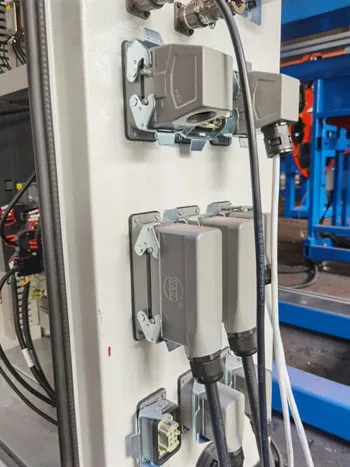

6. The electric control cabinet has a reasonable and compact layout, stable performance, expandability and strong anti-interference ability. The electrical control cabinet and machine are connected by aviation plugs, which are easy to install and plug and play.
 |
 |

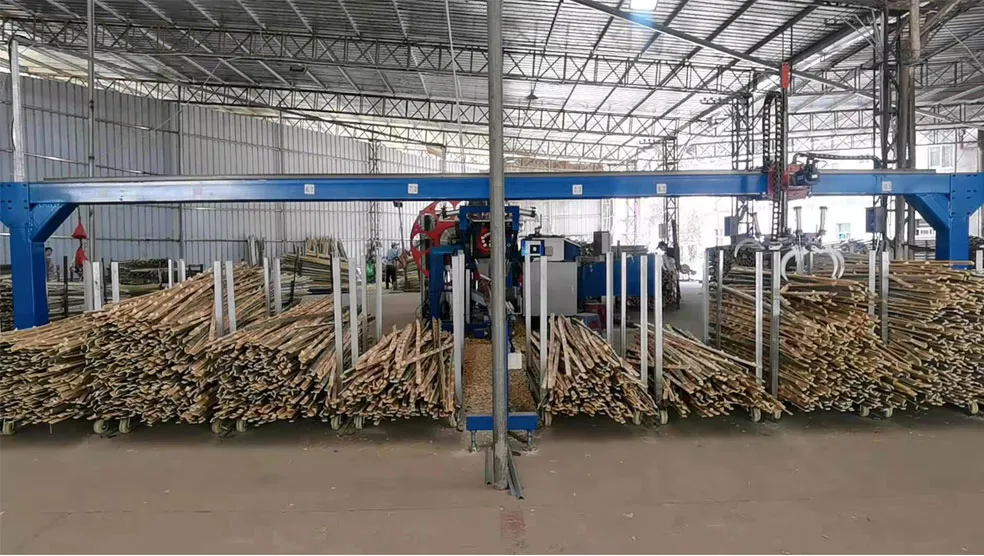

7. The grading gantry equipped with servo motor, with high position accuracy. 9M gantry span, it’s capable to place 6-8 units trolley.

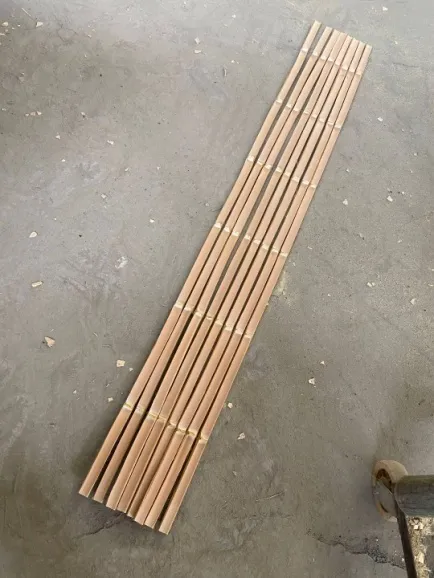

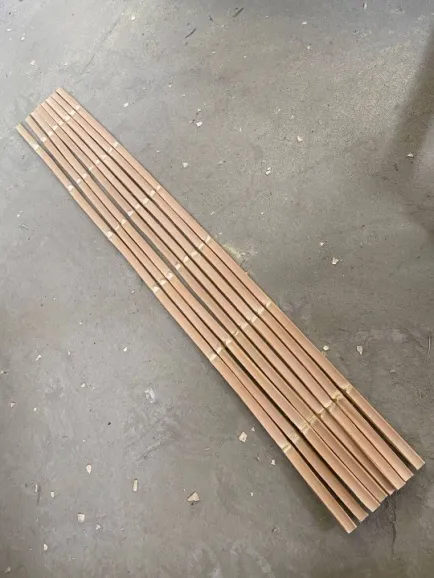

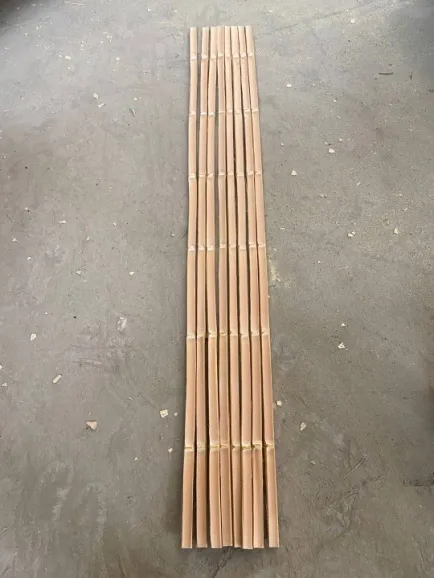

8. The width of the bamboo strips is equality, and the thickness of the whole circle of the bamboo pole can be measured to improve the grade thickness of the bamboo strips. The edges of the bamboo strips are smooth, and the rough planing allowance is small, which improves the yield rate and reduces the cost.
 |
 |
 |
